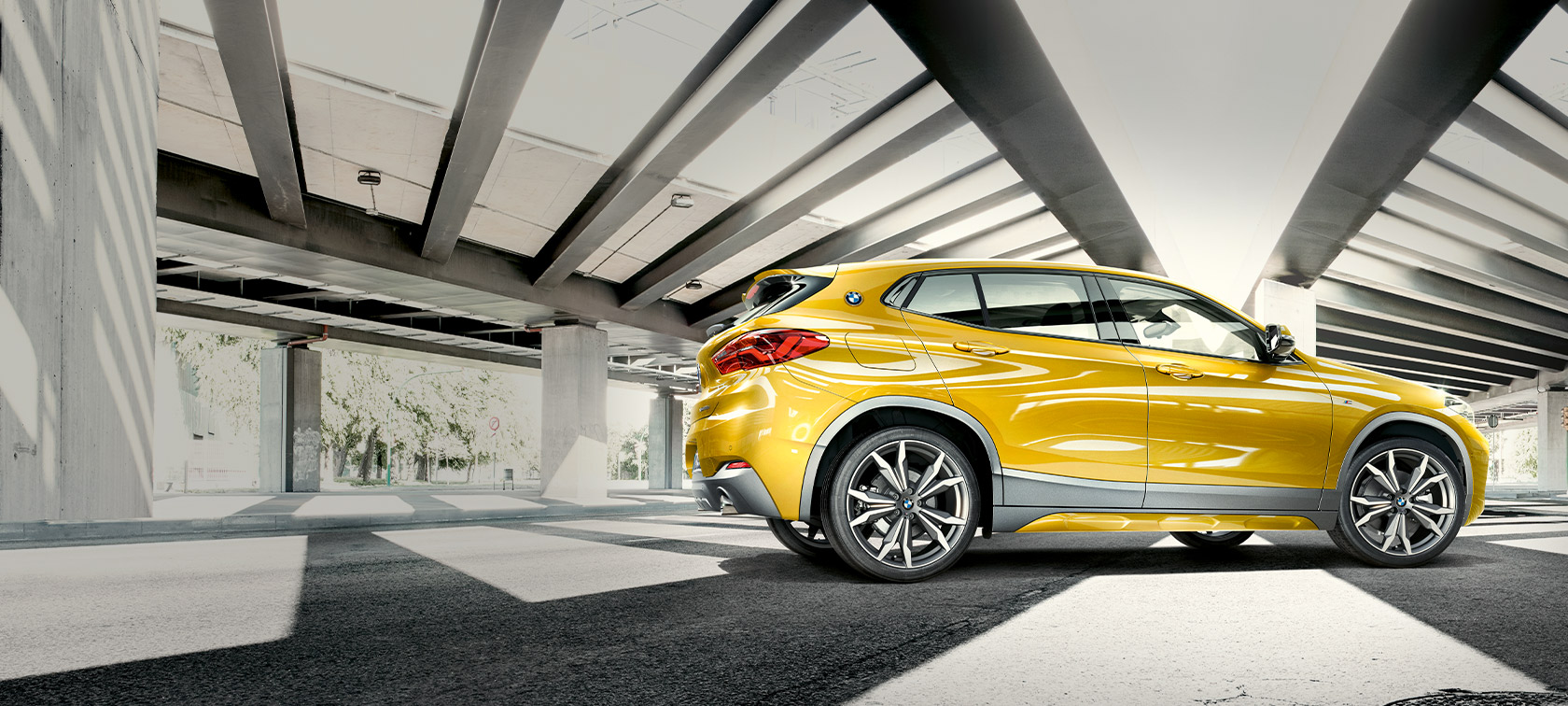

BMW X2 F39 Sanremo front view Three-quarter side view with model

THE X2

BMW X2: ENGINES & TECHNICAL DATA

Discover the powerful petrol and hybrid engines as well as the dimensions and other technical data of the BMW X2.

Read more
THE X2BMW X2: ENGINES & TECHNICAL DATA

BMW X2: TECHNICAL DATA.

Select model

Weight

Unladen weight EU in kg 1,485-1,475 [1,505-1,495]
Max. permissible weight in kg 1,985 [2,005]
Permitted load in kg 575-585 [575-585]
Permitted axle load front/rear in kg 1,000/1,020 [1,020/1,020]
Luggage capacity min. (seats up or roof down) in l 470 [470]
Luggage capacity max. (seats down or roof up) in l 1,355 [1,355]
Trailer load (unbraked) in kg 735-740 [745-750]
Trailer load 8% (braked) in kg 1,400-1,700 [1,400-1,700]
Trailer load 12% (braked) in kg 1,400-1,700 [1,400-1,700]

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 100-103 (136-140)/4,500-6,500
Engine torque (Nm) at 1/min 220/1,480-4,200
Compression ratio : 1 11.0

Performance

Top speed in km/h 205 [205]
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 9.6 [9.6]

Fuel consumption

Urban in l/100 km 7.3 [7.6]
Extra-urban in l/100 km 5.4 [5.5]
Combined in l/100 km 6.1 [6.3]
CO2 combined emissions in g/km 139 [143]
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,545-1,535
Max. permissible weight in kg 2,055
Permitted load in kg 585-595
Permitted axle load front/rear in kg 1,055/1,030
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 131-141 (178-192)/5,000-6,000
Engine torque (Nm) at 1/min 280/1,350-4,600
Compression ratio : 1 11.0

Performance

Top speed in km/h 227
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 7.7

Fuel consumption

Urban in l/100 km 7.6-7.4
Extra-urban in l/100 km 5.5-5.3
Combined in l/100 km 6.3-6.0
CO2 combined emissions in g/km 143-138
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,640-1,625
Max. permissible weight in kg 2,145
Permitted load in kg 580-595
Permitted axle load front/rear in kg 1,085-1,090/1,090
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 131-141 (178-192)/5,000-6,000
Engine torque (Nm) at 1/min 280/1,350-4,600
Compression ratio : 1 11.0

Performance

Top speed in km/h 224
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 7.4

Fuel consumption

Urban in l/100 km 8.6
Extra-urban in l/100 km 6.3
Combined in l/100 km 7.1
CO2 combined emissions in g/km 163
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 61

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,690-1,685
Max. permissible weight in kg 2.19
Permitted load in kg 575-580
Permitted axle load front/rear in kg 1,120/1,095
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg -
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 225 (306)/5,000-6,250
Engine torque (Nm) at 1/min 450/1,750-4,500
Compression ratio : 1 9.5

Performance

Top speed in km/h 250
Electrical engine top speed in km/h -
Acceleration 0–100 km/h in s 4.9

Fuel consumption

Urban in l/100 km 9.2-8.7
Extra-urban in l/100 km 6.3
Combined in l/100 km 7.5-7.2
CO2 combined emissions in g/km 171-164
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 61

Wheels

Tyre dimensions front 225/45 R19 96 W XL
Tyre dimensions rear 225/45 R19 96 W XL
Wheel dimensions and material front 8 J x 19 inches, light-alloy
Wheel dimensions and material rear 8 J x 19 inches, light-alloy

Range and charging

Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1.805
Max. permissible weight in kg 2,300
Permitted load in kg 570
Permitted axle load front/rear in kg 1,120/1,250
Luggage capacity min. (seats up or roof down) in l 410
Luggage capacity max. (seats down or roof up) in l 1,290
Trailer load (unbraked) in kg -
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power* in kW (hp) at 1/min 92 (125)/5,000-5,500
Engine torque (Nm) at 1/min 220/1,500-3,800
Compression ratio : 1 11.0

Performance

Top speed in km/h 195
Electrical engine top speed in km/h 135
Acceleration 0–100 km/h in s 6.8

Fuel consumption

Urban in l/100 km -
Extra-urban in l/100 km -
Combined in l/100 km 2.0-1.7
CO2 combined emissions in g/km 44-38
Electricity consumption, combined in kWh/100km 15.4-14.9
Tank capacity, approx. in l 36

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km (NEDC) -
Growth capacity of lithium–ion battery in kWh 10.0
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h 2.4
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h 3.2

Electric engine

Electric engine power kW (PS) at 1/min 70 (95)/4,500
Electric Engine torque (Nm) at 1/min 165/100-3,000

Combined system power

Combined power kW (PS) 162 (220)
Combined torque Nm 385
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions.

  • BMW X2 xDrive25e**:
    Fuel consumption in l/100 km (combined): 2.0-1.7
    CO2 emissions in g/km (combined): 44-38
    Energy consumption in kWh/100 km (combined): 15.4-14.9

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
